Photos of Flowbench Valve Openers PINTO
Bill Jones' Photo Gallery Page 28

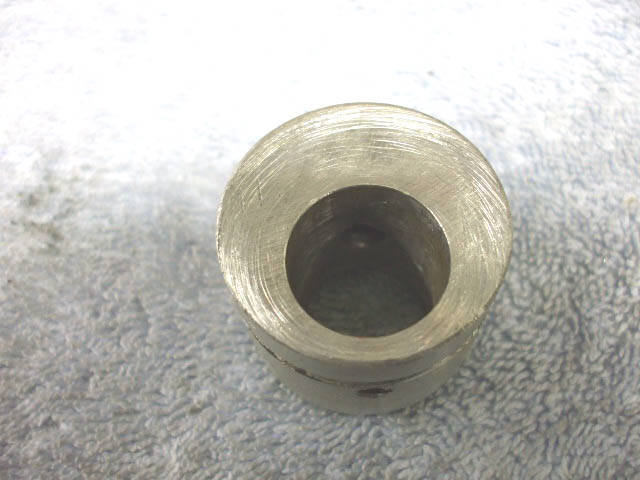

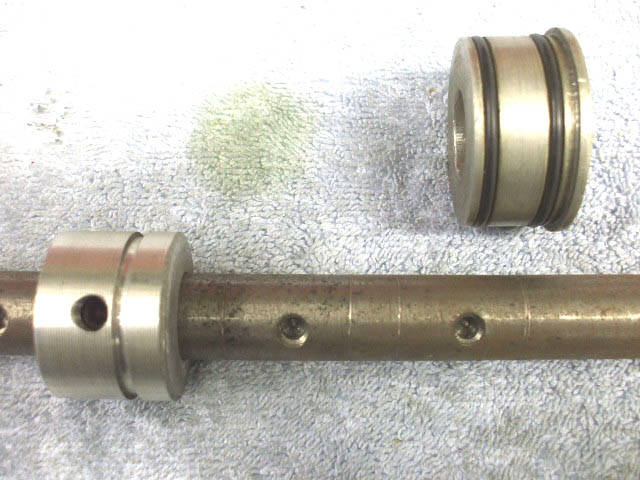

2000 pinto cam bearing bushing and round lobe with offset center hole
2000 pinto valve opening hole is for camshaft hex end small hole is to locate moveable cam lobe

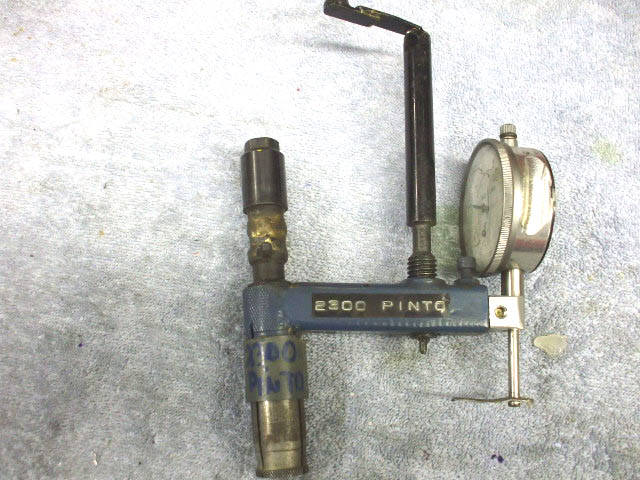

2300 pinto valve opener with expandable lock

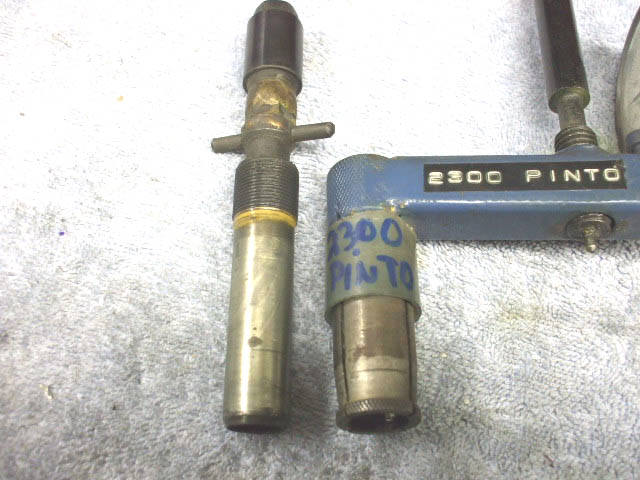

2300 showing taper & fine thread on shank

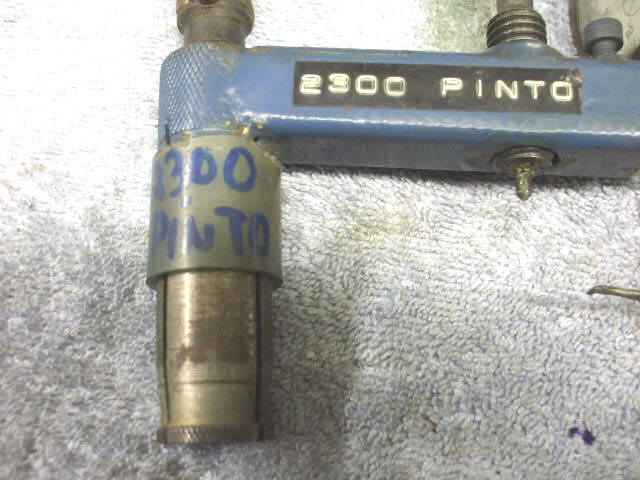

2300 tool expands into lifter bore

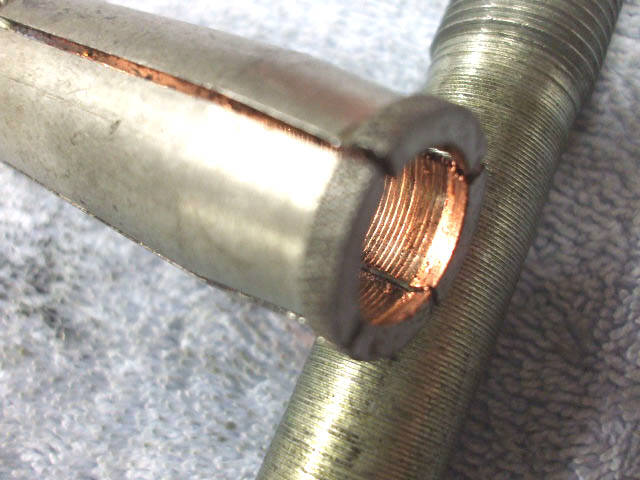

has internal taper at bottom
made the expanable end out of this

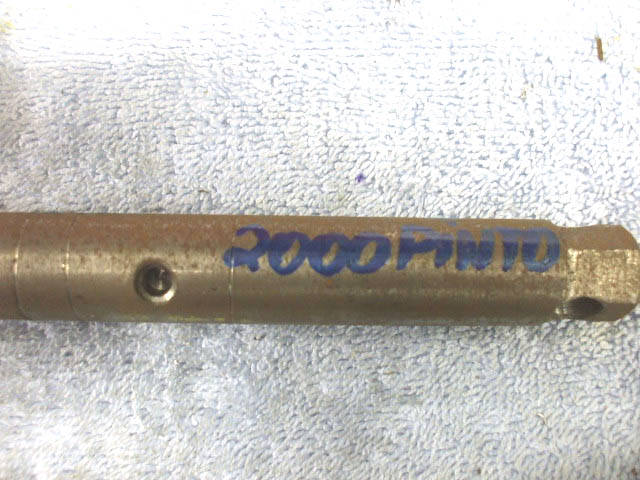

other end of 2000 pinto shaft

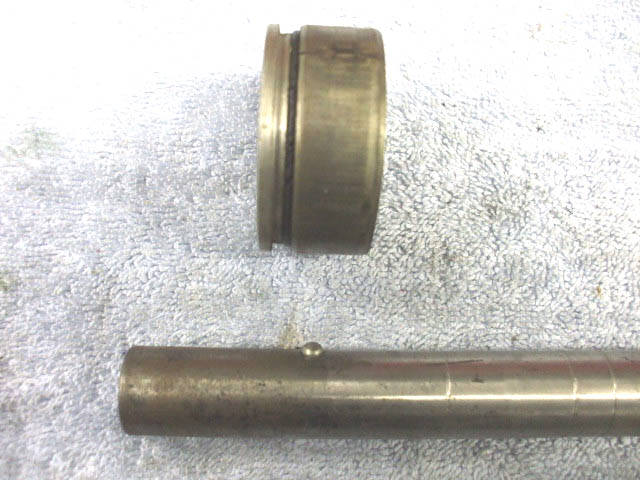

the cam for opening the valve
